LL3-B

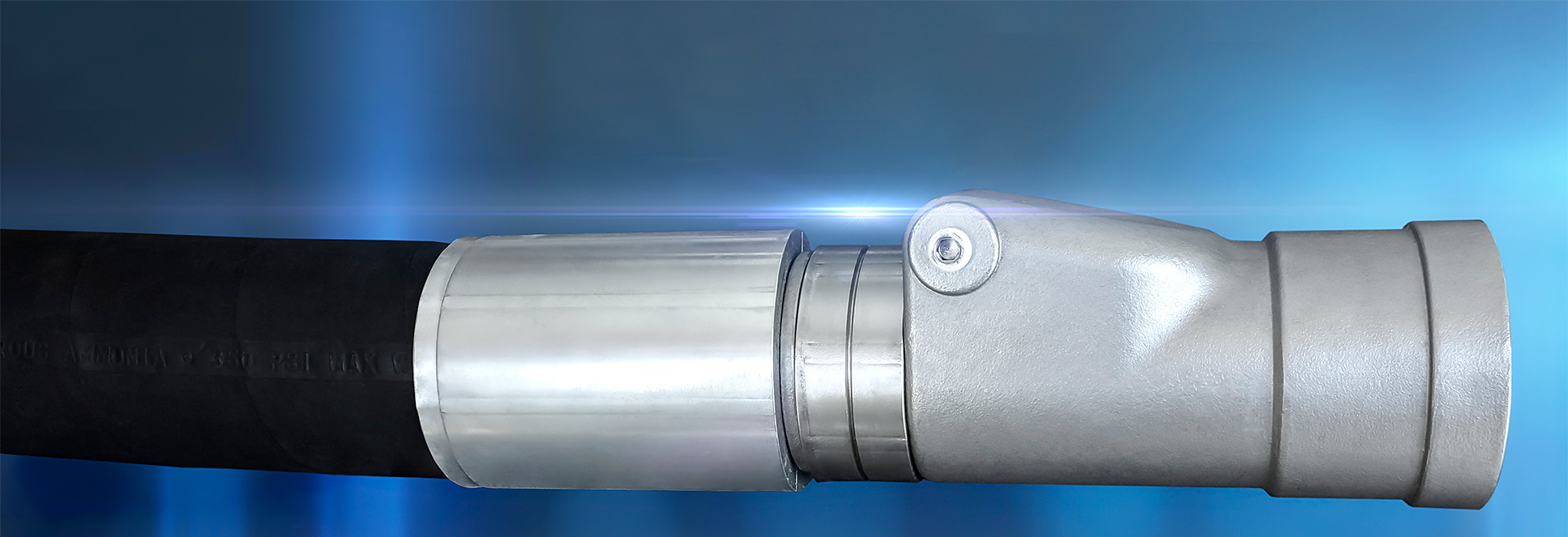

LL3-B Engineering Data
BREAK-AWAY HOSE ASSEMBLIES
Smart-Hose® Safety System
The LL3-B BREAK-AWAY hose assembly is designed to protect the plant, tank truck, rail car, loading arms, and workforce from the hazardous consequences of an unintentional pull-away incident. The hose assembly contains valves in each end to stop product flow in the event of a catastrophic hose failure, plus, the added feature of a break-away fitting on one end that is designed to separate at a pre-determined pull-force in the event of a pull-away. The amount of pull force it takes for the system to fail-safe is directly related to the angle of the pull-away.
DETAILS
Features and Benefits
- Full flow technology
- No human intervention needed to activate.
- All hoses are serial numbered and shipped with a test certificate and operating booklet.
- 360 degree engineered break-away point.
- Rugged shock proof design with annular seals.
- 316 SS Schedule 80 construction.
- Factory rebuildable.
- Meets 5 to 1 burst specifications.
- Custom engineered break-points for specific applications.
- Priced significantly less than conventional break-away apparatus.
Optional Apparatus
- Flanges
- Cam lock
- Acmes
- Scuff Guard
- CGA connections
- ...and MORE!
COUPLING DATA
- CHEMICAL VERSION: Wetted parts are 316 stainless steel.
- FLAMMABLE GAS VERSION: Wetted parts are 316 stainless steel..
- BREAK SEAL: Nitrile / Viton / EPDM / PTFE Teflon
- O-RING: All break-aways use PTFE Teflon unless otherwise specified.
Diameters
1 1/4″
2″
3″
LL3-B Diagrams
| Hose ID | Alloys Offered | End Configuration | Weight/lbs. each | Length/Inches |
|---|---|---|---|---|
| 1 1/4" | 316-SS | Male & Female NPT, Flanges | 2.6 | 3.97" |
| 2" | 316-SS | Male & Female NPT, Flanges | 4.7 | 5.36" |
| 3" | 316-SS | Male & Female NPT, Flanges | 12.1 | 8.21" |
NOTE: DO NOT use the Smart-Hose® Technologies Break-Away System as a swivel device for installation.
The Smart-Hose® Break-Away Hose Assembly System will arrive equipped with a rubber bumper guard and safety wire. The safety wire prevents the assembly from being used as a swivel device during facility installation. Using the break-away system as a swivel device can compromise the integrity of the internal seals. DO NOT remove the wire or rubber bumper guard. All Smart-Hose® Technologies’ warranties will be void if the rubber bumper and/or safety wire is cut or removed.
FULLY CUSTOMIZABLE SOLUTIONS
We can custom design a hose assembly or break-away hose assembly to meet your specific application requirements.
