LL1
LL1 Engineering Data
HOSE ASSEMBLIES
Smart-Hose® Safety System

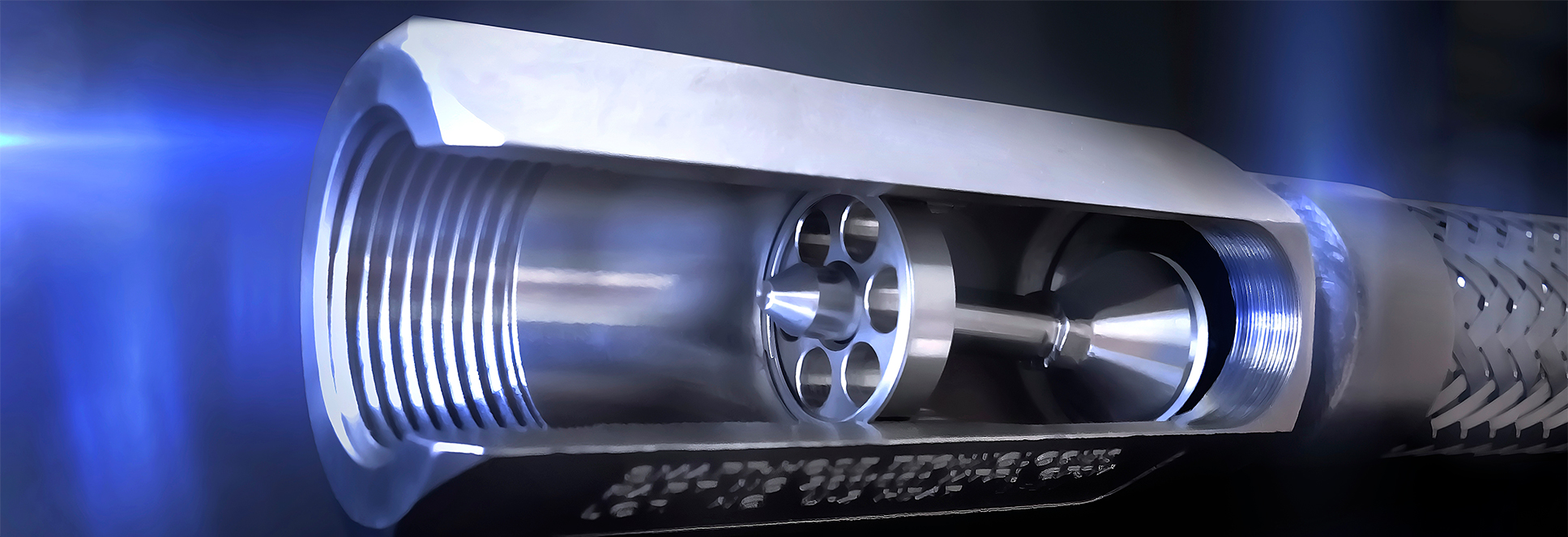

LL1 incorporates an internal cable connected to normally unseated “Plunger Valves” located on each end of the cable. The integrated valves will instantly stop product flow if a catastrophic failure occurs. No human intervention is required to activate the system.
DETAILS
Features and Benefits
- Full flow technology
- Tested under water with CDA or nitrogen to working and test pressure.
- All hoses are serial numbered and shipped with a test certificate and operating booklet.
Optional Apparatus
- Flanges
- Armor
- Acmes
- Scuff Guard
- CGA connections
- ...and MORE!
COUPLING DATA
- CHEMICAL VERSION: Wetted parts are 316 stainless steel.
- HIGH PRESSURE - COMPRESSED GAS VERSION: Wetted parts are 316 stainless steel.
- FLAMMABLE GAS VERSION: All parts are 316 stainless steel with brass plug valve.
- BRASS VERSION: All parts are brass with 316 stainless steel snap ring or beryllium copper.
Diameters
1/4″
1/2″
3/4″
1″ *
LL1 Diagrams
Recommended for gaseous flow and liquid applications.
* NOTE: 1″ available only for Monel – Chlorine Transfer

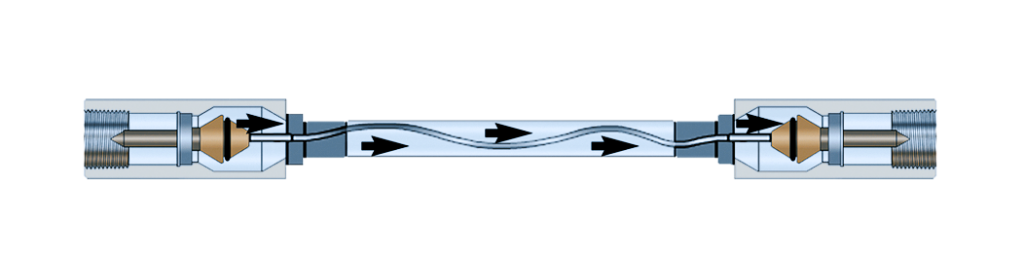

Normal Flow - LL1 Valves Open
Coupling Ejection - LL1 Valves Closed
| Hose ID | Alloys Offered | End Configuration | Weight/lbs. each | Length/Inches |
|---|---|---|---|---|
| 1/4" | 316-SS; Brass; Bronze | Male & Female NPT, BSPP, BSPT | .4 | 2.26" |
| 1/2" | 316-SS; Brass | Male & Female NPT, Flanges | .8 | 4.08" |
| 3/4" | 316-SS; Brass | Male & Female NPT, Flanges | 1.6 | 5.72" |
| 1" | Monel | Male & Female NPT, Flanges | 2.8 | 4.88" |
FULLY CUSTOMIZABLE SOLUTIONS
We can custom design a hose assembly or break-away hose assembly to meet your specific application requirements.
